EV-1 Sensor Core Features:
Combines advanced solid-state sensors with the Evolution autopilot processor in a single easy-to-install housing
Mounted above or below decks, rugged enclosure is fully sealed and built to IPX6 and IPX7 waterproofing / submersion standards
9-Axis sensor monitors vessel motion in (3) dimensions
Precision monitoring of heading, pitch, roll, and yaw allows the autopilot to evolve instantly as sea conditions and vessel dynamics change
Simple SeaTalk ng connectivity to control head and ACU
Solid state sensor technology delivers dynamic accuracy to within 2° in all conditions
Auto-compensation for onboard magnetic fields and reliable heading accuracy in northern and southern extremes
Fast and reliable heading data for MARPA, radar overlay and heading modes on Raymarine multifunction displays
p70Rs Control Head Features:
Combination of rotary dial and push-button controls designed for powerboats
New LightHouse user interface is easy to learn and use
Start-up wizard helps you configure the pilot quickly and easily
Wide 160° horizontal and vertical viewing angles
Advanced LED backlighting offers low power consumption, and delivers vibrant color and contrast
Anti-reflective coating for improved visibility in bright sunlight
Simple system and group dimming / illumination
Supported autopilot modes include Auto, Standby, Pattern, Track, Wind Vane, Power Steer and Jog Steer
Support for multiple data sources
SeaTalk ng/ NMEA 2000 and SeaTalk 1 connectivity (no bridging required)
ACU-200 Actuator Control Unit Features:
Delivers reliable autopilot drive power and provides power to the SeaTalk ng bus
Supports Type 1 Raymarine hydraulic, linear and rotary mechanical drives
Provides powerful and secure interface between steering systems and the EV-1 course computer and 9-axis sensor
Type 1 Hydraulic Reversing Pump 12 VDC Features:
Operates the boat's steering mechanism as part of a Raymarine autopilot system
Primarily designed for use on boats with an existing hydraulic steering system
Contains a precision gear pump and a check valve driven by a servo motor
EV-1 Sensor Core (E70096) Specifications:
Nominal Supply Voltage: 12V DC
Operating Voltage Range: 10.8 - 15.6V DC
Power Consumption: 30 mA
Sensors:
3-Axis digital accelerometer
3-Axis digital compass
3-Axis gyro digital angular rate sensor
Data Connections: SeaTalk ng
Waterproof Rating: IPX6
Dimensions: 5.5" W x 5" H x 5" D
p70Rs Control Head Specifications:
Nominal Supply Voltage: 12V DC
Operating Voltage Range: 9 - 16V DC
Power Consumption: 69 mA (no lighting) / 134 mA (100% illumination)
Data Connections: SeaTalk ng (2) and SeaTalk 1 Compatible
Display Size: 3.5" TFT LCD / 320 x 240 pixels
Waterproof Rating: IPX6
Dimensions: 4.33" W x 4.52" H
Flush Mount Cutout: 3.54" dia
ACU-200 Actuator Control Unit (E70099) Specifications:
Drive Current Output: Max. continuous 15 Amp
Drive Clutch Output: Up to 2.0 Amp continuous, selectable between 12 / 24V DC
Nominal Supply Voltage: 12 or 24V DC
Operating Voltage Range: 10.8 - 31.2V DC
Power Consumption (standby) - Main Power Supply: 300 mA @ 12 / 24V DC
Power Consumption (standby) - SeaTalk ng : 20 mA @ 12V DC
Data Connections: SeaTalk ng
Connections: Rudder reference sensor, sleep switch, power, drive motor, drive clutch, ground
Waterproof Rating(s): Drip resistant
Dimensions: 11.2" W x 8.3" H x 2.5" D
Type 1 Hydraulic Reversing Pump (M81120) Specifications:
Ram Capacity: 4.9 in 3 - 14 in 3
Max. Stall Pressure @ 12V DC: 750 psi
Peak Flow Rate: 67 in 3 / min

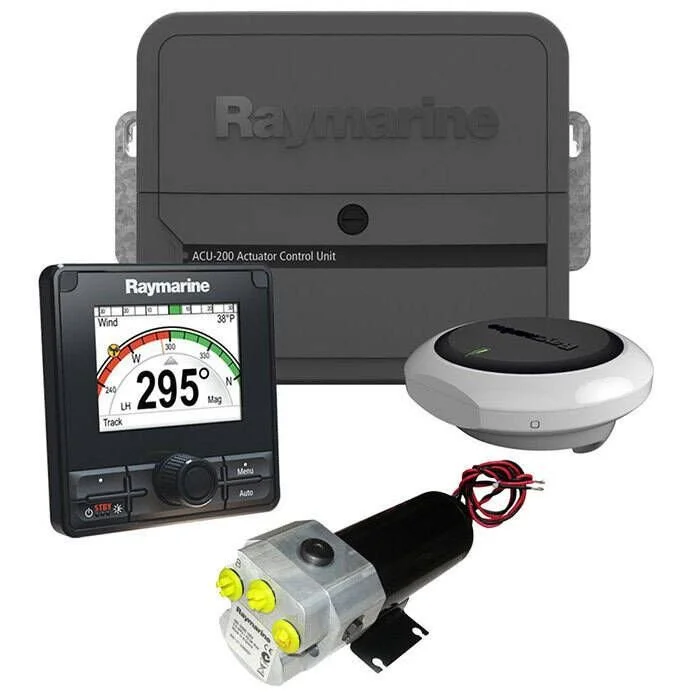

Raymarine Evolution EV-200 Hydraulic Autopilot Pack Includes:
EV-1 Sensor Core (E70096)
p70Rs Control Head
ACU-200 Actuator Control Unit (E70099)
Type 1 Hydraulic Reversing Pump 12 VDC (M81120)
Rotary Rudder Reference Transducer (M81105)
Evolution Cable Kit (R70160)
(1) SeaTalk ng power cable (0.4m)
(1) SeaTalk ng backbone cable (5m)
(1) SeaTalk ng spur cable (0.4m)
(1) SeaTalk ng 5-way connector block
(2) SeaTalk ng T-piece connector
2 x SeaTalk ng terminator
