Features:
Choose from 7 new vivid color options to see fish and structure in maximum contrast and clarity on your 7" fishfinder

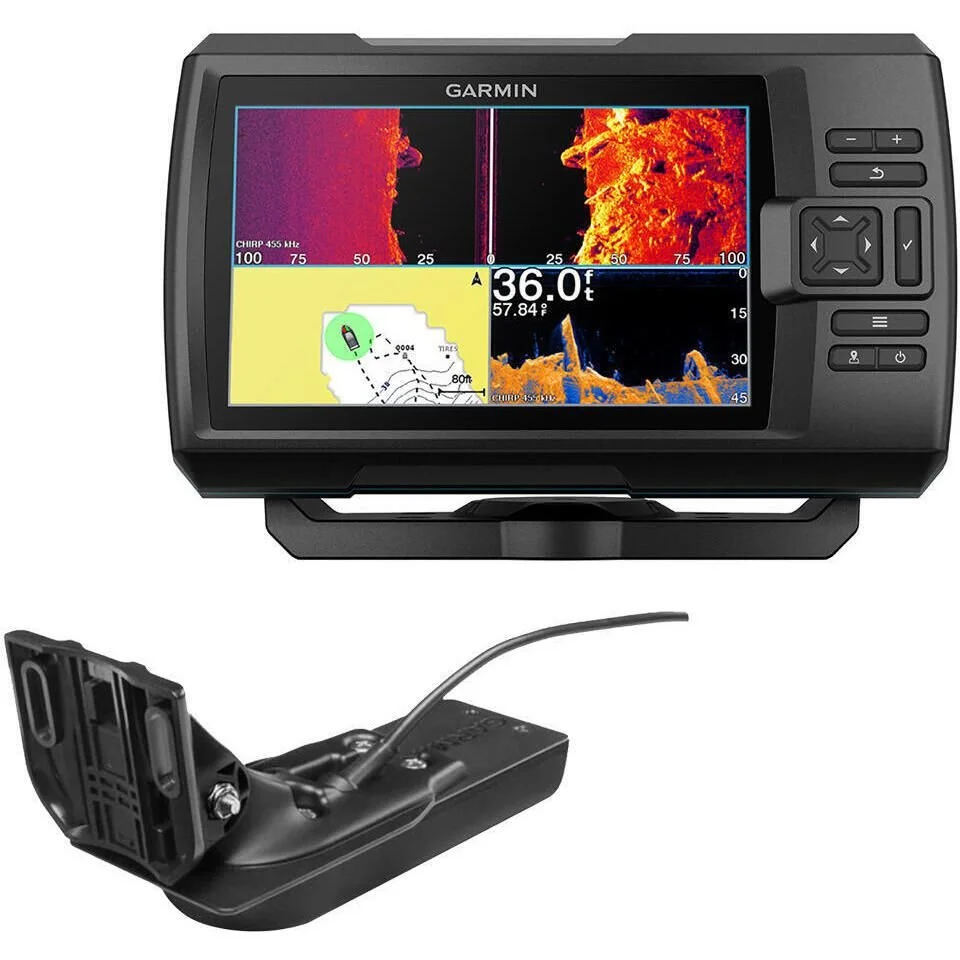

Use the included GT52 transducer to get Garmin CHIRP traditional sonar plus CHIRP ClearVü and CHIRP SideVü scanning sonars
To catch more fish, you need to know where the fish are biting. Use waypoint marking for hot spots so you can easily find your way back
Plan and create routes and view your boat's speed on your fishfinder using high-sensitivity GPS
Nobody knows the waters you fish better than you. With the STRIKER Vivid 7sv fishfinder, you can store up to 2 million acres of maps with 1' contours
Connect to the ActiveCaptain app1 to transfer waypoints, receive smart notifications (including software update notifications) and access the Garmin Quickdraw Community
The STRIKER Vivid 7sv fishfinder includes a tilt/swivel mount plus transom and trolling motor mounting hardware and cable
Specifications:
Dimensions: 9.3" x 5.5" x 2.3" (23.5 x 14.0 x 5.8 cm)
Input: Keyed
Display Size: 3.4" x 6.1" (8.6 x 15.4 cm); 7.0" diag (17.8 cm)
Display Resolution: 800 x 480 pixels
Display Type: WVGA color
Weight: 1.7 lbs (770 g)
Waterproof: IPX7
Mounting Options: flush, tilt/swivel
Maps and Memory
Split-Screen Zoom
Fish Symbol Id (Helps Identify Fish Targets)
Autogain Technology (Minimizes Clutter; Maximizes Targets)
Adjustable Depth Line (Measures Depth Of Underwater Objects)
A-Scope (Real Time Display Of Fish Passing Through Transducer Beam)
Water Temperature Sensor Included
Depth Range Shading
Maps and memory:
Waypoints/Favorites/Locations: 5000
Track Points: 50000
Tracks: 50
Navigation Routes: 100
Sensors:
Has Built-In Receiver
Receiver: Traditional: 50/77/200 kHz, CHIRP (mid and high), ClearVü and SideVü 260/455/800 kHz
GPS
Supports WAAS
Sonar:
Displays Sonar
Traditional Sonar (Dual Frequency/Beam): Built-in
Clearvü
Sidevü: Traditional: 50/77/200 kHz, CHIRP (mid and high), ClearVü and SideVü 260/455/800 kHz
Bottom Lock (Shows Return From The Bottom Up)
Water Temperature Log
Connections:
4-Pin Transducer Ports: 2
Garmin Wi-Fi Network (Local Connection)
Electrical:
Power Input: 12 to 20V DC
Typical Current Draw: 0.67A
Max Current Draw: 1.5A
Power Consumption: 8
Transmit Power: 500 W (RMS)
GT42HW-TM Transducer Specifications:
Frequency: CHIRP High Wide (150-240 kHz); ClearVü CHIRP 455 kHz (425-485 kHz) and 800 kHz (790-850 kHz)
Power:
Traditional 250W
ClearVü/SideVu 350W
Beamwidth:
Traditional: 24°-16°
ClearVü/SideVü: 2.0°x50° @ 455 kHz and 1.0°x30° @ 800 kHz
Maximum Depth:
Traditional: 800 ft
ClearVü: 500 ft
SideVü: 500 ft
Cable Length: 20 ft
Depth/Speed/Temperature: Depth and Temperature
Number Of Pins: 12-pin
Supported Deadrise/Transom Angles: 0°-70° degree transom
