Features:
Scan averaging helps filter out sea clutter and interference to enhance the detection and display of consistent targets
Pulse expansion and angular target-size processing techniques optimize on-screen object shapes for better interpretation at all range scales
Rotation speeds of 24 and 48 RPM for fast redraw rates, with max range up to 72 nautical miles on the 4 kW versions
Historical "trail" of boats on the water is displayed on the screen, removing relative motion influence to help you quickly identify moving targets and potential collision threats
Single radar antenna is capable of providing split-screen, side-by-side images on your compatible chartplotter, with independent range setting and controls for both close and long range
Gain automatically adjusts levels to optimum settings for harbors, near shore and offshore in open waters
Specifications:
Dimension:
4' array: 52.2" x 4.8" x 6.7" (1325 x 122 x 170 mm)
6' array: 76.5" x 4.8" x 6.7" (1938 x 122 x 170 mm)
Waterproof: IPX6
Max wind load: 80kt (100kt with optional voltage converter upgrade)
Rotation speed: 24 and 48 RPM
Beam width:
4' array: 1.8° horizontal, 23° vertical
6' array: 1.1° horizontal, 23° vertical
Maximum range: 72 nm
Minimum range: 20 m
Radar type: Open-array
Power input: 11-32V DC
Power consumption (standby): 18W
Typical power consumption, transmitting (normal mode): 55W
Transmit power: 4 kW
Auto gain: Dynamic
Marpa target tracking: Yes (requires heading sensor, sold separately)
Echo trails: True
Included:

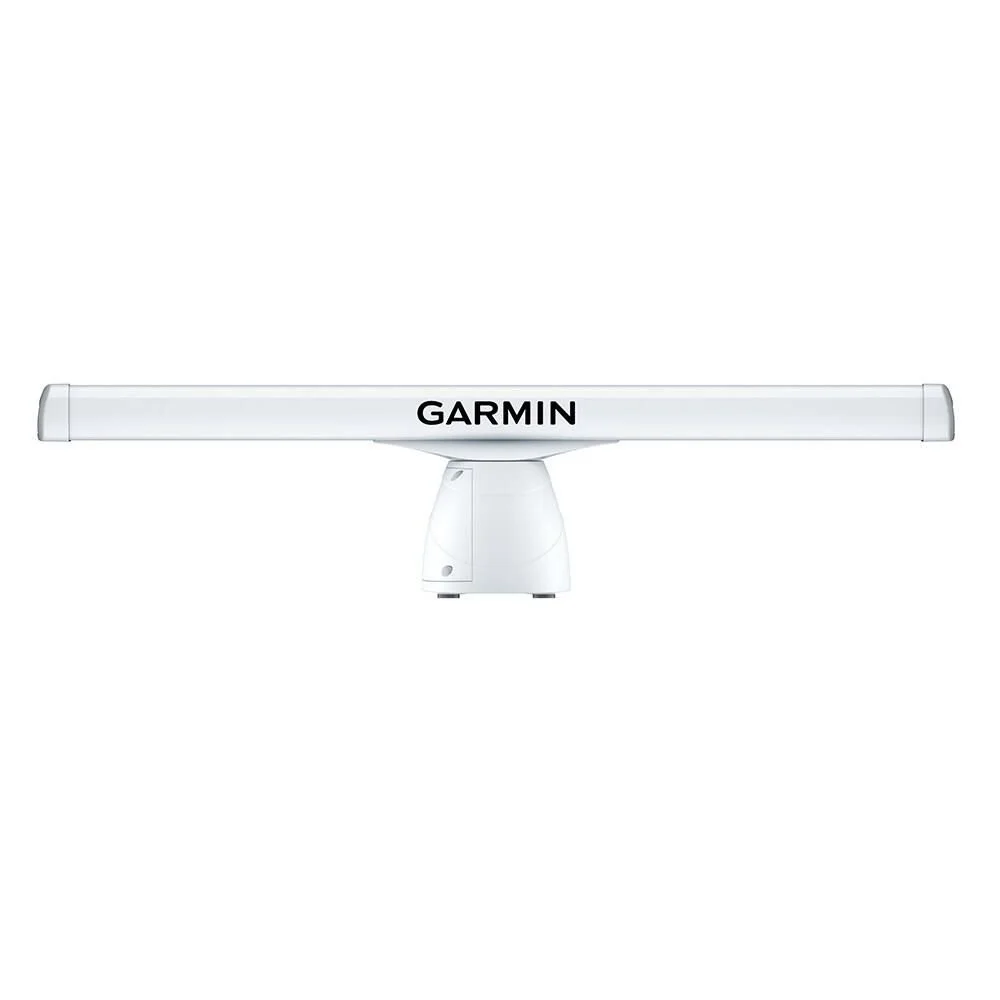

GMR xHD3 4 kW open array radar with 4' or 6' antenna (depending on model selected)
Power cable (15 m/49.21')
Network cable (15 m/49.21')
Mounting hardware kit and template
Installation instructions
